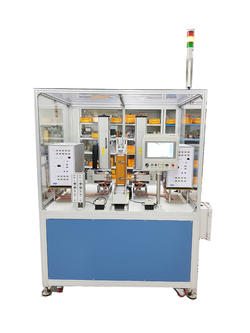

BATTERY PACK SIDE Spot Welding M/C(2CH)
Model : BATTERY PACK SIDE SPOT Welding M/C - 2CH

This method applies welding pressure while applying appropriate pressure when heated by heat generated by metal contact resistance and resistance.
Welding: PCM + PTC + NI plate, etc.

● Loading-Unloading: Operator manual loading-unloading method
Automatically extract equipment to operator space after facility operation

● Mechanical: X motor head type, Y Robot 1 set installation

Z-pneumatic control (two stage step possible).
Follower pressure: max 7kgf (measurement of two welding rods simultaneously)

● Welding controller: TMS-10-2CH 2 set

● Electrode holder: Air cooling system, Welding Tip ≤3, 1.5R

● Driving to the correct location using PLC & Touch screen

● Accurate and stable weld through the inside of the head controller

(time can be set before, after welding, after welding)

● W, H, D and Weight: 1400mm, 24000mm, 1760mm · 800Kg

● TACT TIME : - 168 Point 169sec

1sec per weld (one weld, 4 point)
